cPanel Servers

Print this Topic    Previous page  Parent page  Next page



If you are not familiar with table windows, please read Working with table windows first.



The cPanel Server window lets you add, delete and edit WHM/cPanel servers on which to setup accounts. The following is a description of the columns in this window:



Server Name

A unique name identifying the server. This is just an internal name identifying the server and need not be related to the hostname of the server. This field is editable only when adding a new server. The edit mode for this field is a textbox.

Hostname

Hostname of the server. For example, if you use http://xyz.host.com/whm to access your WHM admin area, the hostname is xyz.host.com. The edit mode for this field is a textbox.

Connection Type

The type of connection to use to connect to the server. Valid values are HTTP and HTTPS. The edit mode for this field is a dropdown list.

Username

Username to login to the server. The edit mode for this field is a textbox.

Access Key

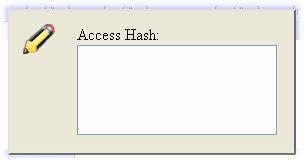

The access key used to login to the server. It is sometimes also called remote access key or access hash. You will usually find this access key in your WHM admin interface under the link Setup Remote Access Key. The following panel shows up when editing this field:



Cool Wave Panel Cpanel Access Key

Nameservers

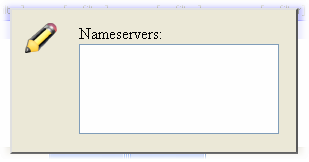

List of nameservers for this server, one per line. The following panel shows up when editing this field:



Cool Wave Panel Nameservers

Max Disk Space

The maximum amount of disk space in megabytes (MB) available on the server to setup accounts. The edit mode for this field is a textbox.

Max Bandwidth

The maximum amount of bandwidth in megabytes (MB) per month available on the server. The edit mode for this field is a textbox.

Max Accounts

The maximum number of accounts that you wish to allow on the server. The edit mode for this field is a textbox.

Used Disk Space

The amount of disk space in megabytes (MB) allocated to accounts on the server. The edit mode for this field is a textbox.

Used Bandwidth

The amount of bandwidth in megabytes (MB) per month allocated to accounts on the server. The edit mode for this field is a textbox.

Used Accounts

The number of accounts that have been setup on the server. The edit mode for this field is a textbox.
